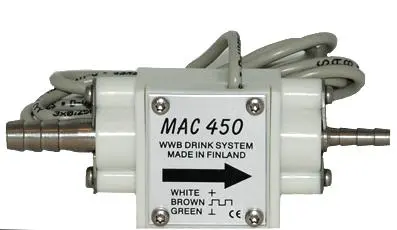

MAC-450 FLOWANTURI 10/10/MCV
Flow measurement of beer and cider. Approved for industrial food production and processing.
Approved measuring range: 0.2-1 L
Measurement accuracy: +/- 1% (INSPECTA OY #230089-0)
Pressure range: 1.5-3.5 bar (<10 bar)
Pipe connections: in 10.0 mm / out 10.0 mm
Cable connector: Phoenix MCVW 1.5/ 3-ST (cable length 1.5 m)
Supply voltage: 5 - 24 V DC
Measuring principle: Inductive
Maximum load current: 10 mA
The MAC 400 series injection-molded flow meters for beer, cider, spirits, wine and liqueurs are made of plastic approved for food production or processing. The simple design of the meter ensures high reliability and a long service life. The flow meters are easy to install due to their small size. The design is watertight and can be opened for cleaning if necessary.
All MAC 400 sensors have been tested in Germany according to TRSK and SchankV and are approved by the "Zertifizierungsstelle für Getränkeschankanlagen". INSPECTA OY approval 164872/05, CE approval.
